• Manual transfer case & hubs
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*

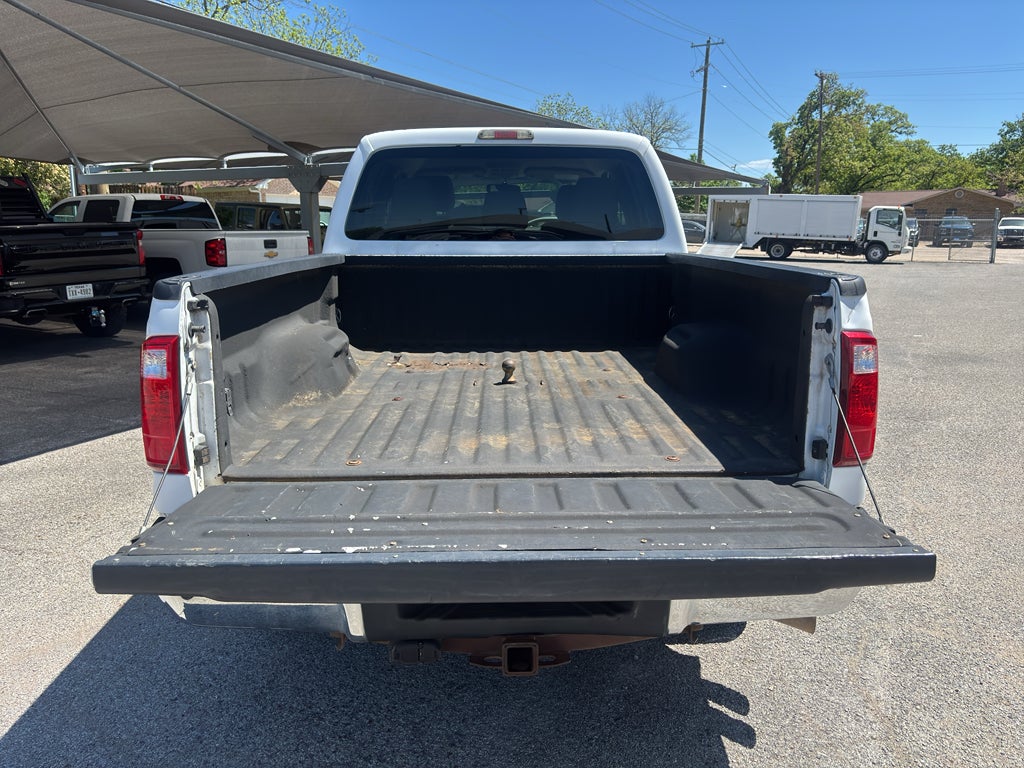

• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• 2-ton mechanical jack

• (5) LT245/75R17E all-season BSW tires

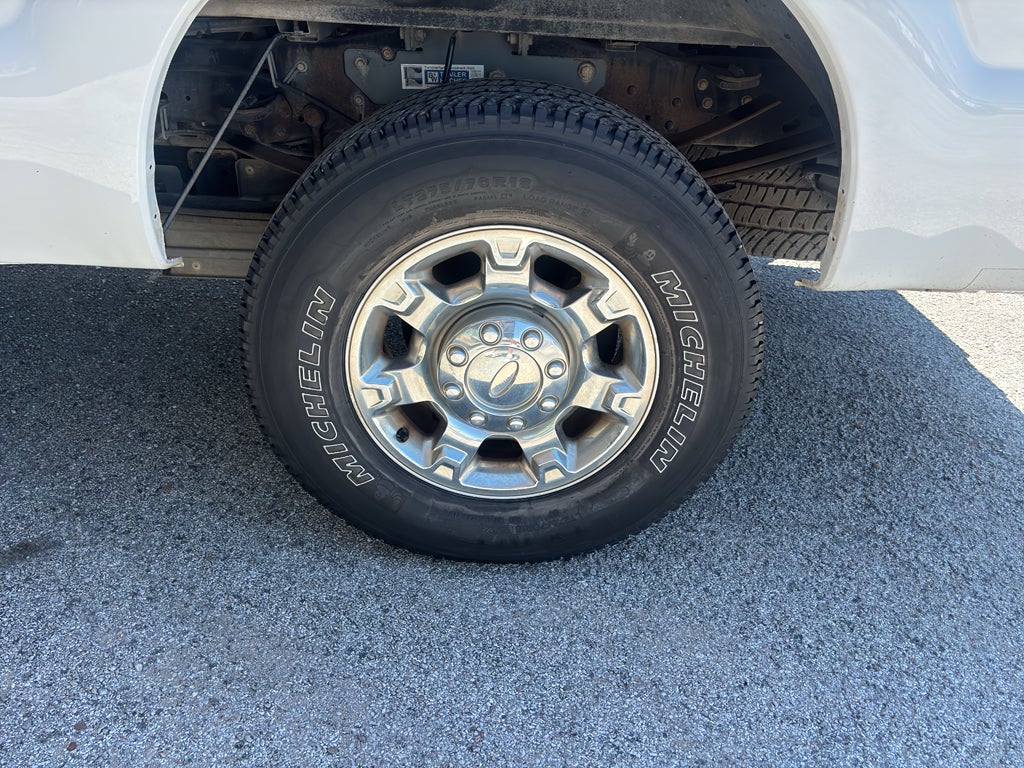

• 17" 5-spoke cast aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• Grille w/medium platinum insert & chrome surround
• Dual beam jewel-effect headlamps
• Pickup box/cargo lights
• Underhood service light
• Manually telescoping pwr heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Variable intermittent windshield wipers
• Front/rear license plate brackets
• Black door handles
• Removable locking tailgate w/black handle & TailGate Assist

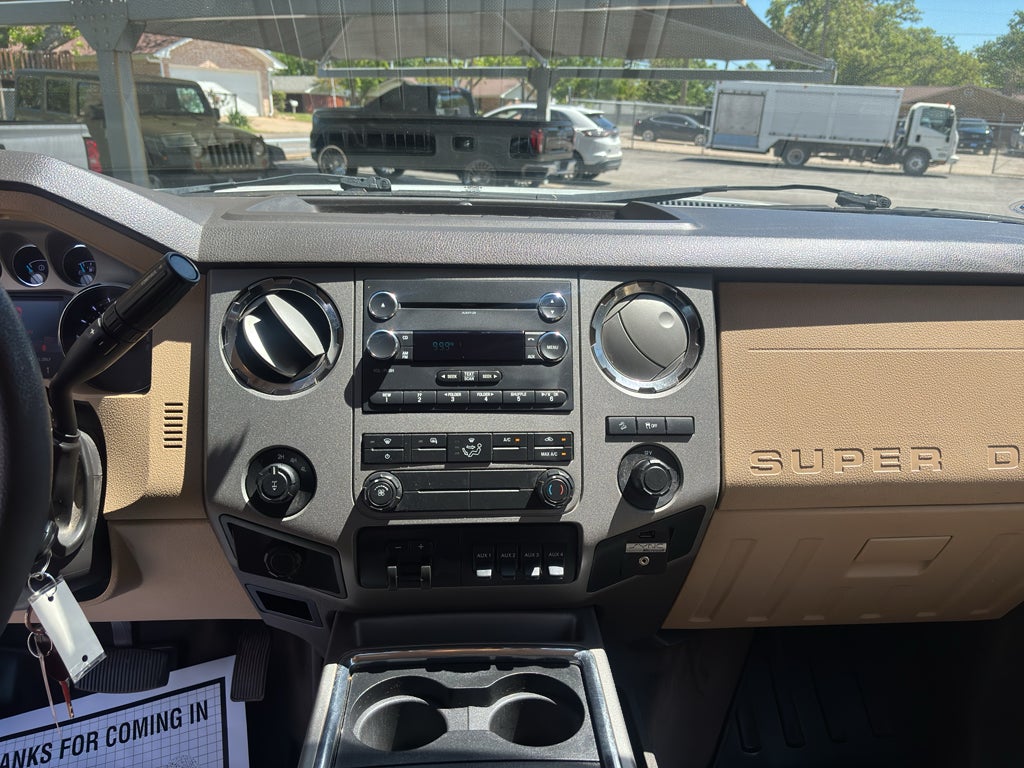

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack

• Air conditioning w/chrome ringed black vents

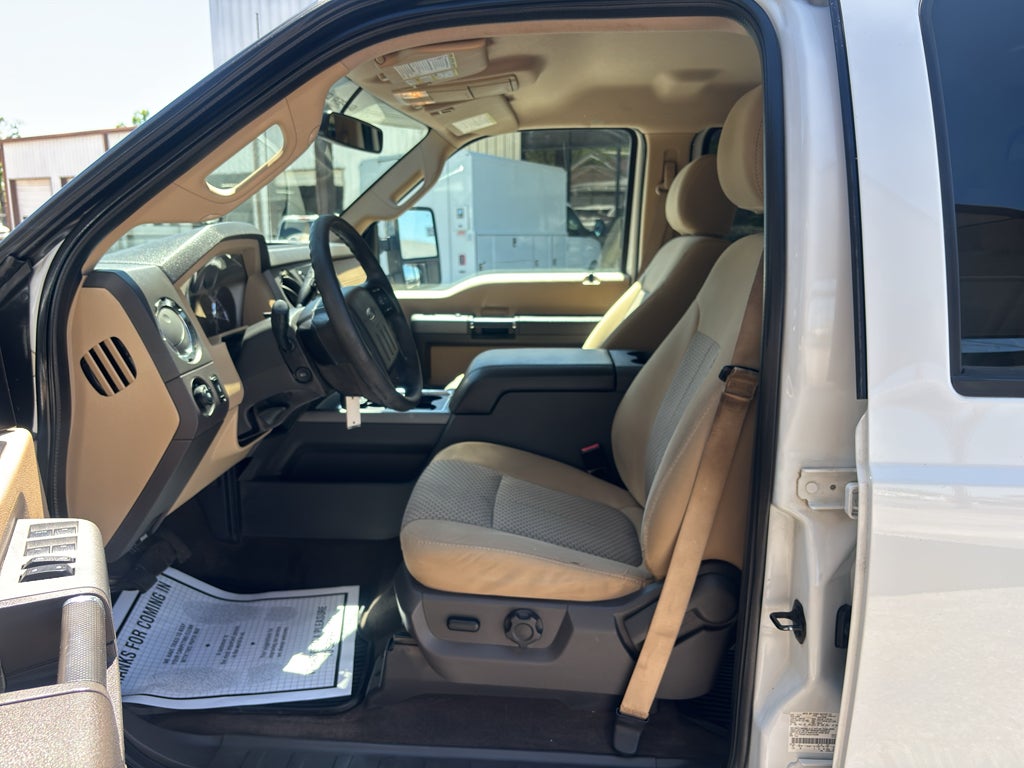

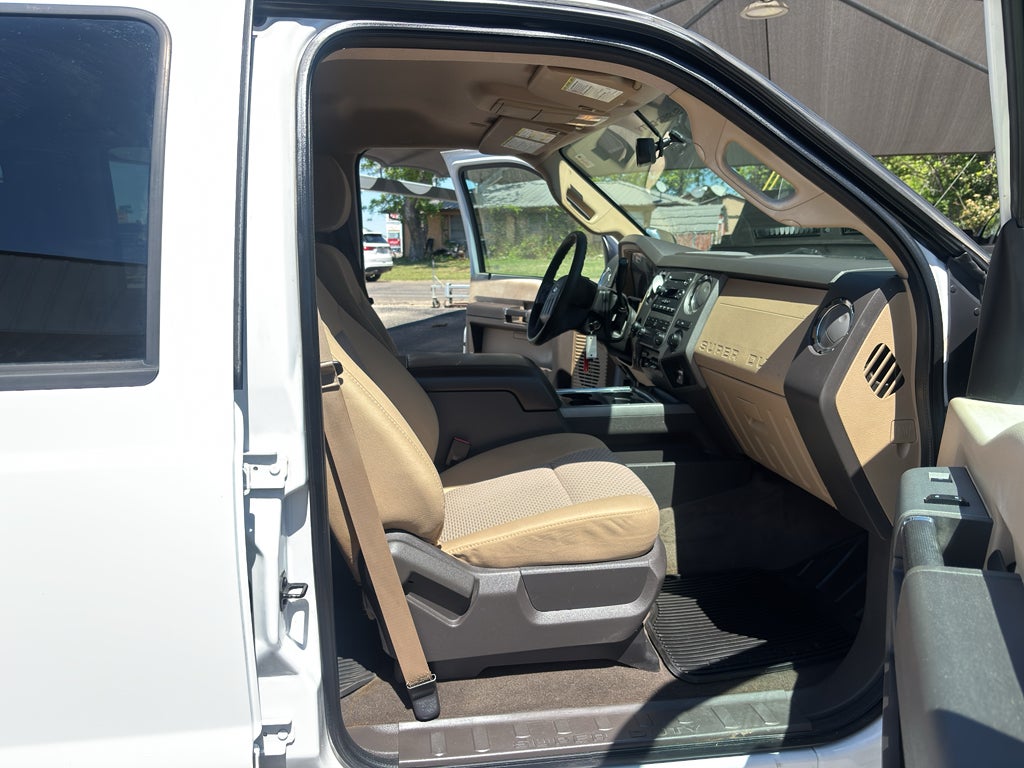

• Cloth 40/20/40 split bench front seat -inc: center armrest, cupholder, storage, center underseat storage w/aux pwr outlet
• Driver manual lumbar support
• 4-way adjustable driver/passenger headrests

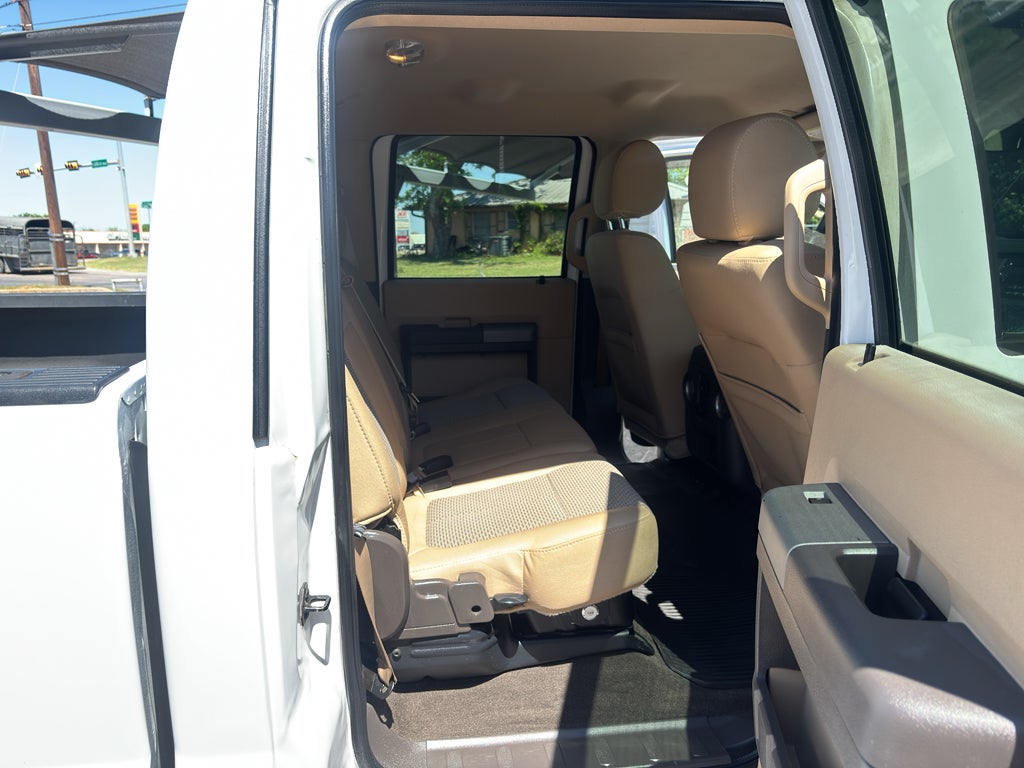

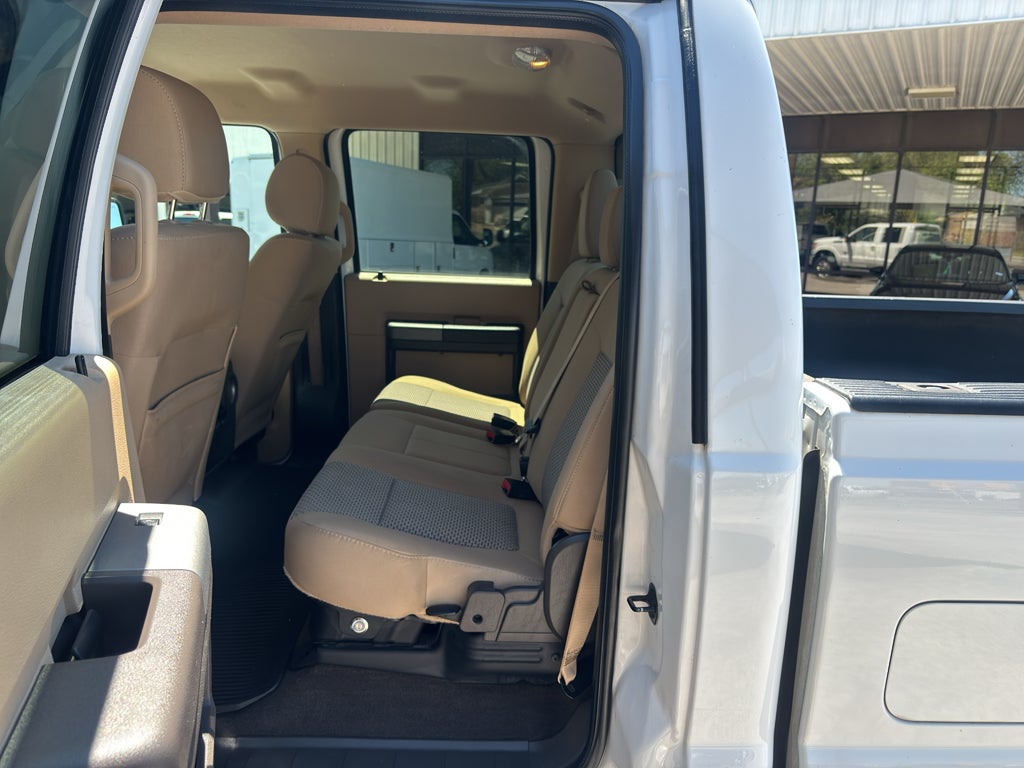

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Tilt/telescoping steering column
• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel, outside temp display
• Oil minder system
• Pwr windows w/driver one-touch-up/down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• Dash-top tray
• Glove box
• Instrument panel mounted storage

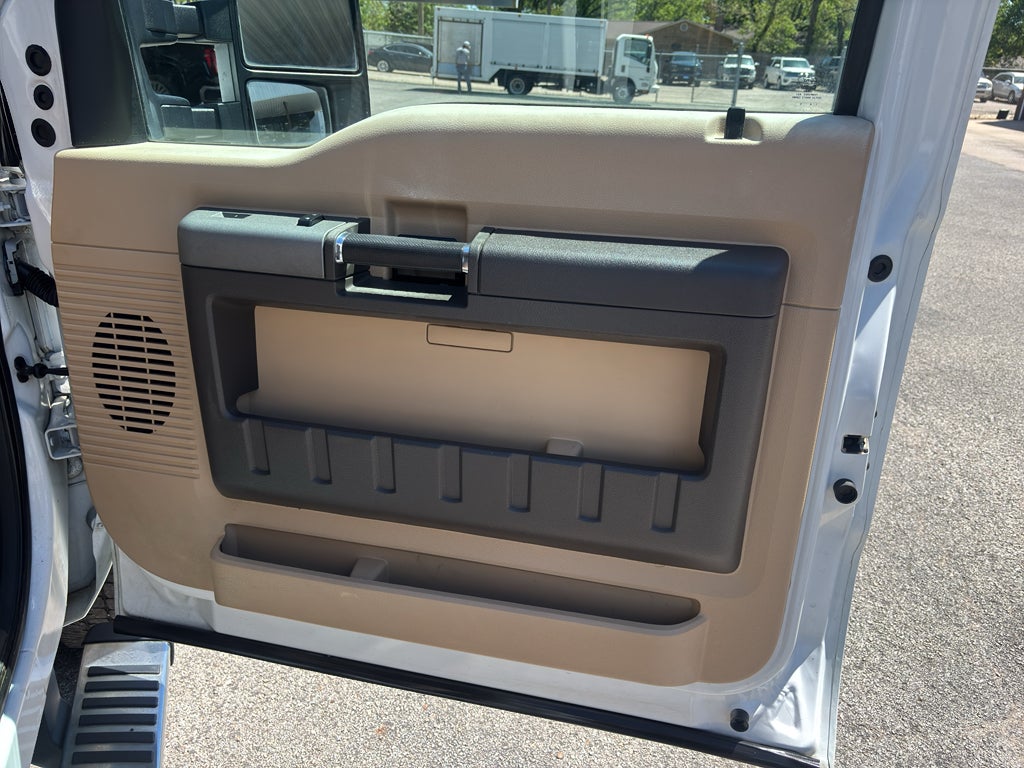

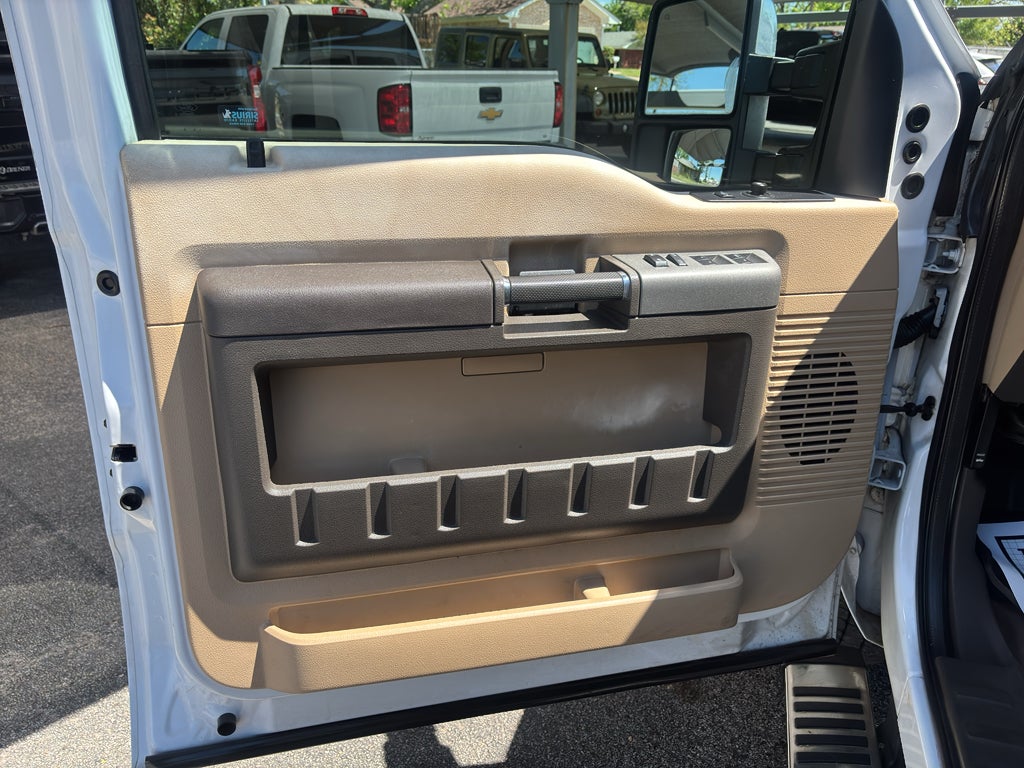

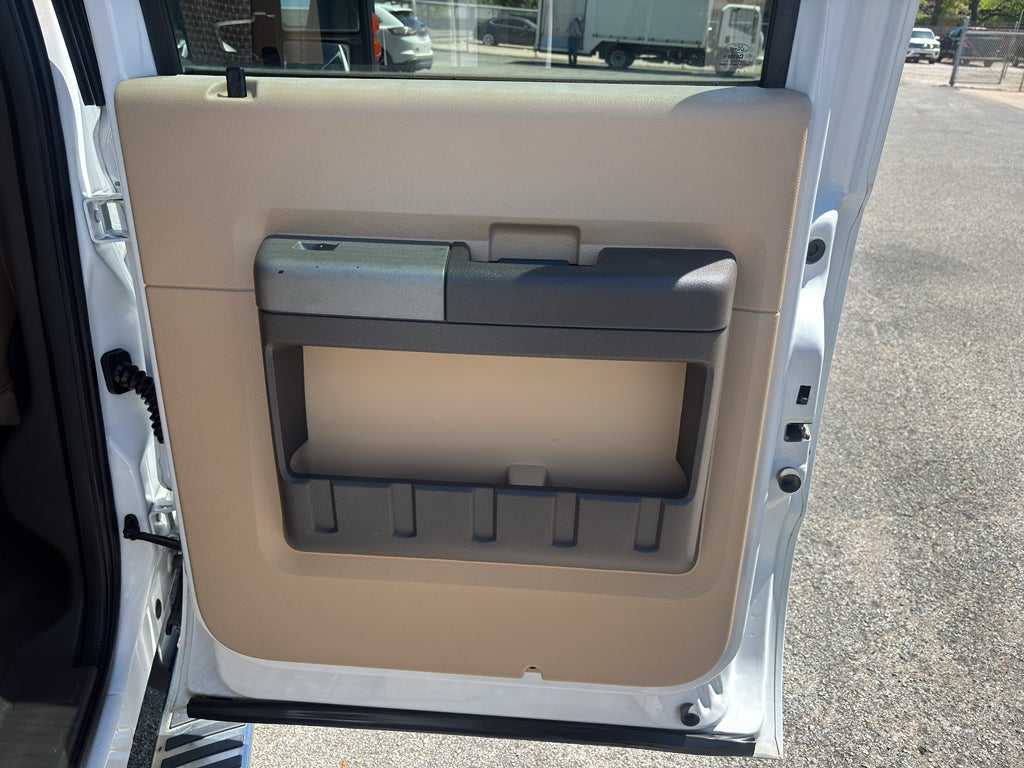

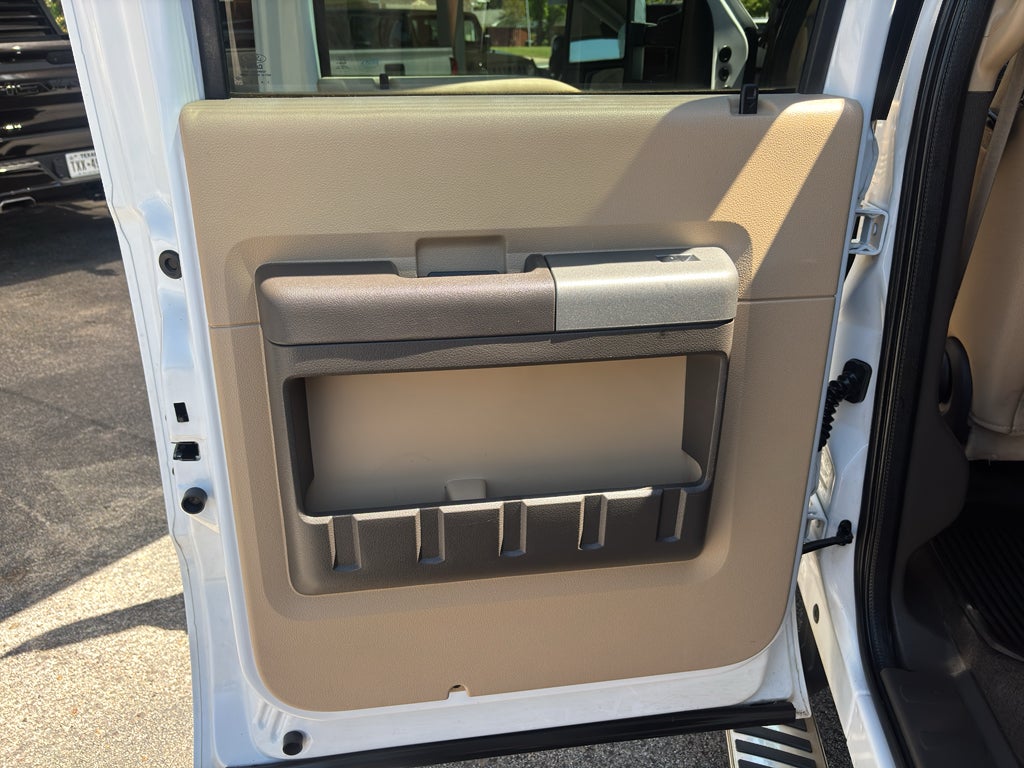

• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel, molded upper applique, upper & lower map pockets, grab handle & reflector
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors -inc: covered mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• Pwr 4-wheel disc anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Safety Canopy system
• Driver & front passenger airbags
• Driver & front passenger side airbag/curtain
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Front center seat integrated restraints (SIR)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute

FX4 OFF ROAD PKG

• hill descent control
• transfer case & fuel tank skid plates

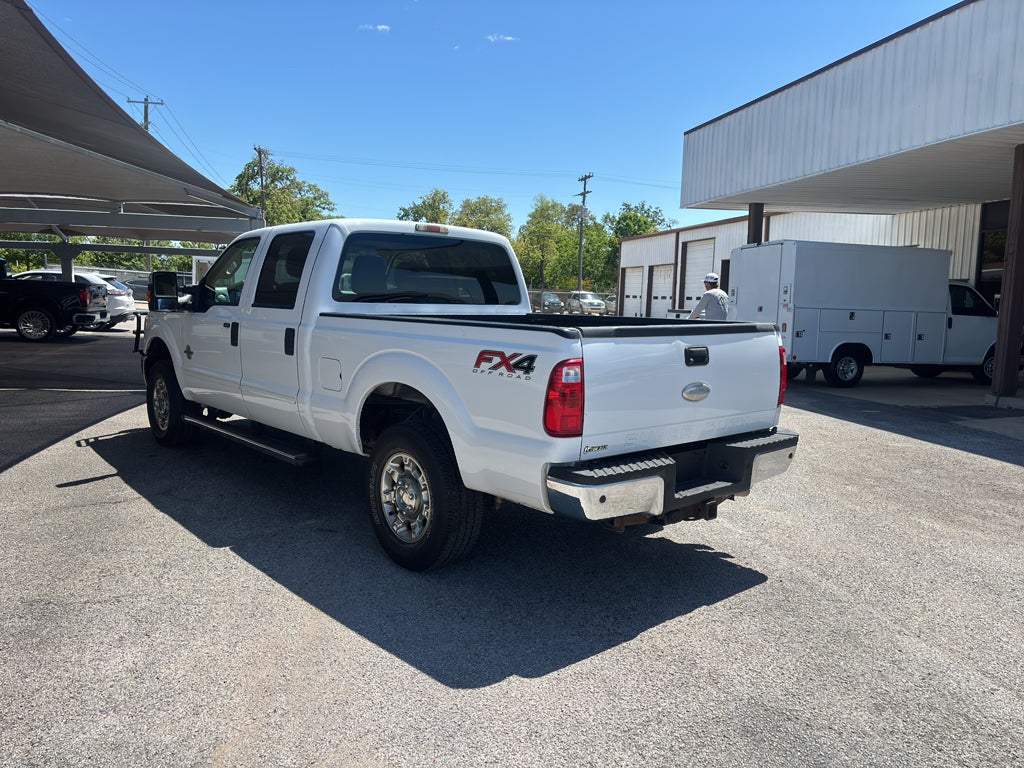

• unique "FX4 Off Road" decal
• Rancho branded colored front/rear shocks

XLT PREMIUM PKG

• 18" chrome clad wheels
• LT275/65R18E BSW all-season tires
• 6-way pwr driver seat
• pwr adjustable pedals
• autolamp/rainlamp
• autolock/auto-unlock
• SecuriCode keyless entry keypad on driver side
• bright metallic exhaust tip
• chrome tow hooks
• unique chrome mirror caps
• chrome pickup bed tie-down hooks
• 6" angular chrome step bars
• electrochromic rearview mirror w/compass
• fog lamps
• LCD productivity screen
• steering wheel controls
• SYNC

CAMPER PKG

• heavy service front springs
• rear stabilizer bar
• slide-in camper certification
• rear auxiliary springs

REAR VIEW CAMERA

• electrochromic rearview mirror w/video

POWERSCOPE PWR TELESCOPING & FOLDING HEATED TRAILER TOW MIRRORS

• turn signals
• integrated clearance lights
• heated convex spotter mirror

(4) UPFITTER SWITCHES

• switches located on instrument panel

SKID PLATE PKG

• transfer case & fuel tank

• FX4 Off-Road Package: Transfer Case and Fuel Tank Skid Plates; Hill Descent Control; Colored Front and Rear Rancho Branded Shocks
• XLT Premium Package: 6-Way Power Driver Seat; Steering Wheel Audio Controls; Electrochromic Mirror; LCD Productivity Screen; Auto-Lock/auto-unlock; Auto-Lamp/rain-lamp; Compass; SecuriCode Keyless Entry Keypad (driver-Side); SYNC with AppLink; 6" Angular Chrome Step Bars; Unique Chrome Mirror Caps; 18" Chrome Clad Cast Aluminum Wheels; Bright Metallic Exhaust Tip; Fog Lamps
• Camper Package: Rear Stabilizer Bar
• Order Code 603A: AM/FM stereo/single-CD/MP3 Player Radio; 10
• 000 Lb Payload Package GVWR
• LT275/70Rx18E BSW A/T (4) Tires
• Cloth Luxury 40/console/40 Front Seats
• Rear-View Camera
• SYNC with AppLink
• Electronic Locking with 3.55 Axle Ratio
• Reverse Vehicle Aid Sensor
• Remote Start System
• Satellite Radio
• PowerScope Trailer-Tow Mirrors
• Upfitter Switches (4)
• Transfer Case and Fuel Tank Skid Plates
• Steering Wheel Audio Controls
• Bodyside Molding
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• PowerCode keyfob remote start
• Driver seat power cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Powerstroke 6.7L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 400HP
• Powerstroke 6.7L V-8
• MyKey restricted driving mode/alerts
• SecuriCode external keypad door lock control
• Mechanical
• Bluetooth® wireless audio streaming
• SecuriLock immobilizer
• Bluetooth® handsfree wireless device connectivity
• SYNC AppLink smart device app link
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• PowerScope power extendable trailer mirrors
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• 0.150 kW
• Front fog lights
• Easy lift tailgate
• Easy lower tailgate
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Chrome-clad wheel covers
• Power adjustable pedals
• Upfitter switches
• 18 x 8-inch front and rear aluminum wheels
• LT275/70SR18 AT BSW 629 RPM front and rear tires

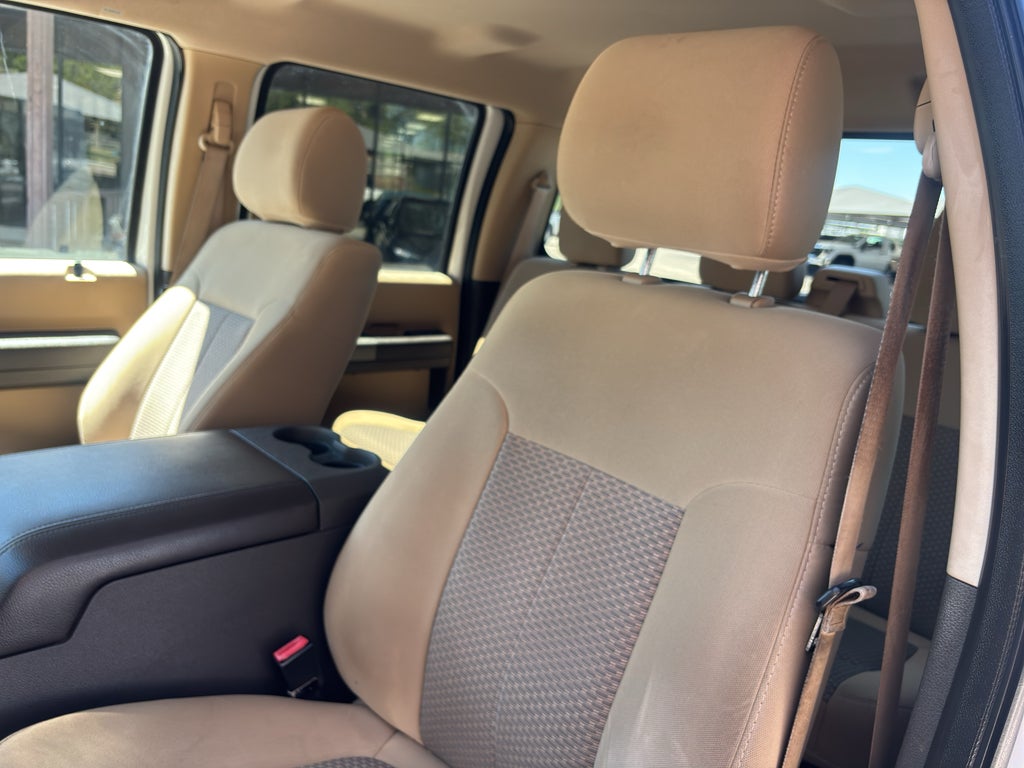

• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Auto-locking doors
• Intercooled turbo
• TorqShift 6-speed automatic
• Selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3941
• Curb Weight - Rear (lbs): 2846
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2975
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TDX
• Front Tire Order Code: TBK
• Rear Tire Order Code: TDX
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TDX
• Spare Tire Order Code: TBK
• Front Tire Size: LT275/70R18E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT275/70R18E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT275/70R18E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3640
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3640
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3640
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 628
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 628
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 628
• Revolutions/Mile @ 45 mph - Spare: 660
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.6
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Ext'd Cab Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

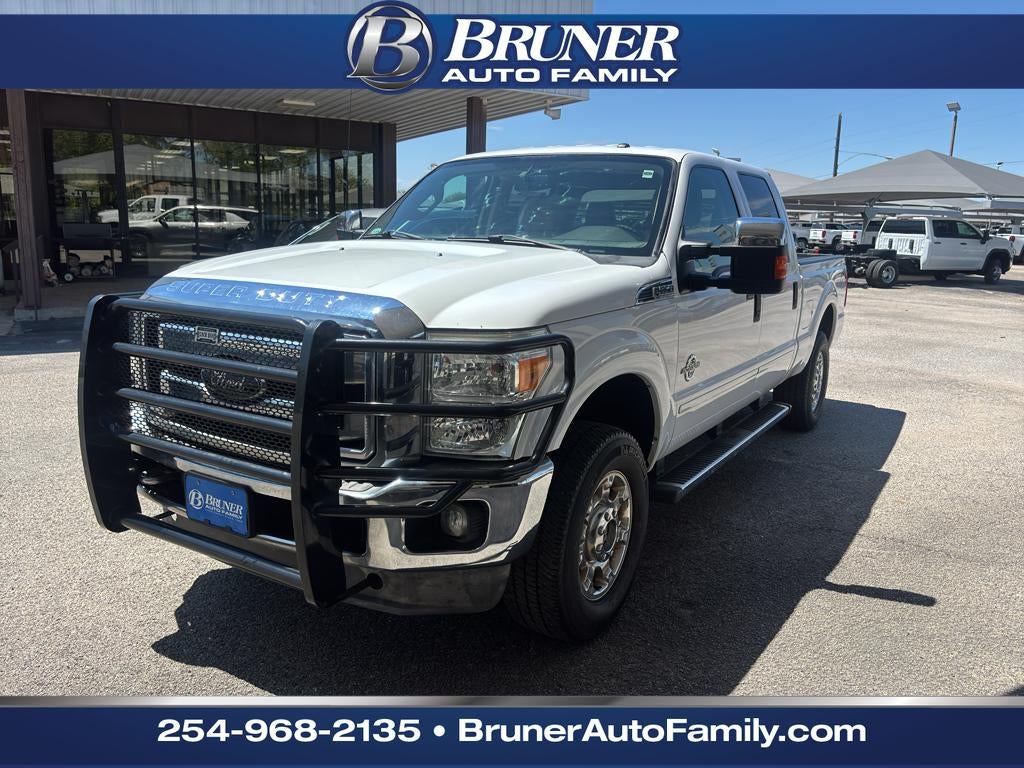

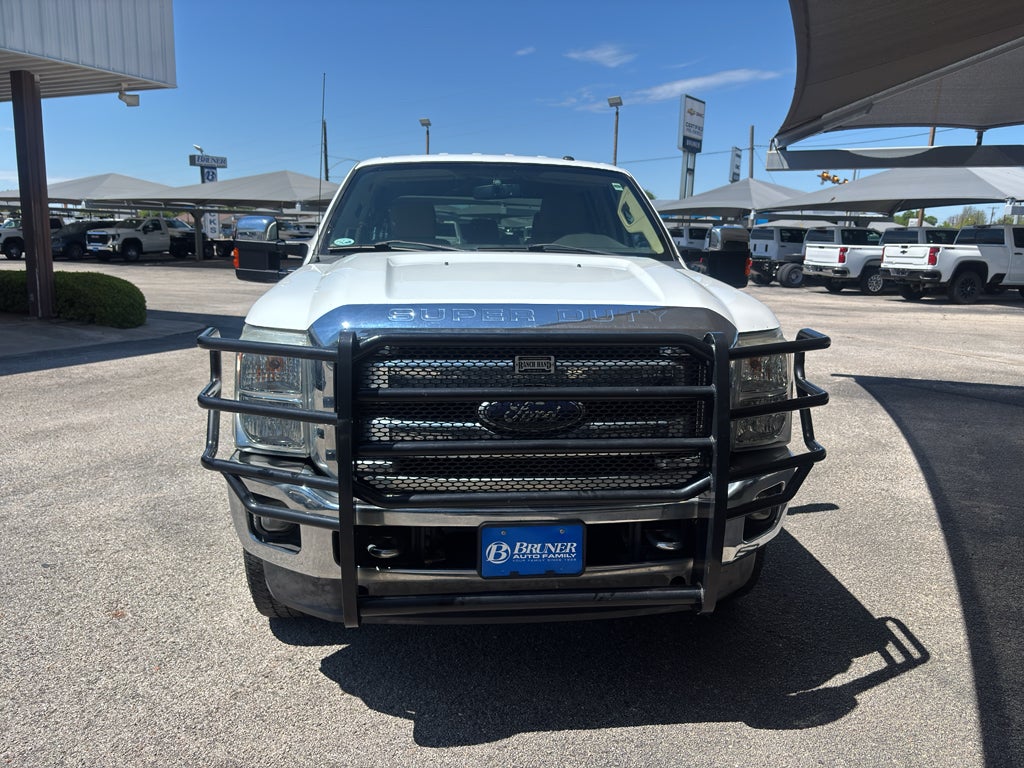

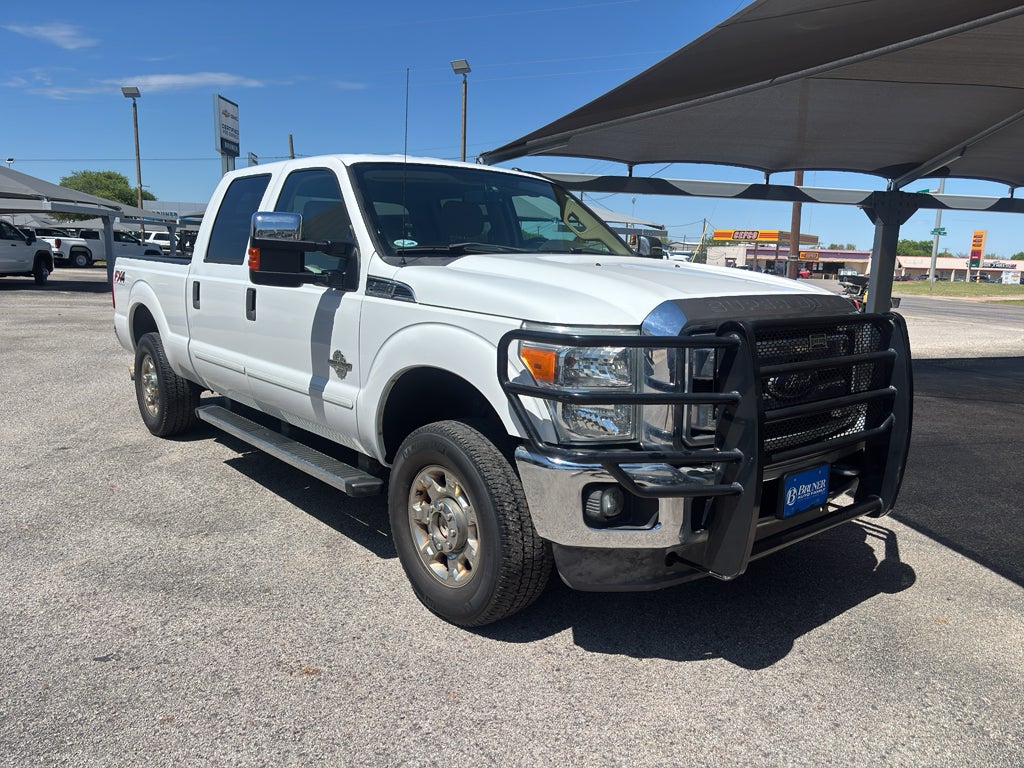

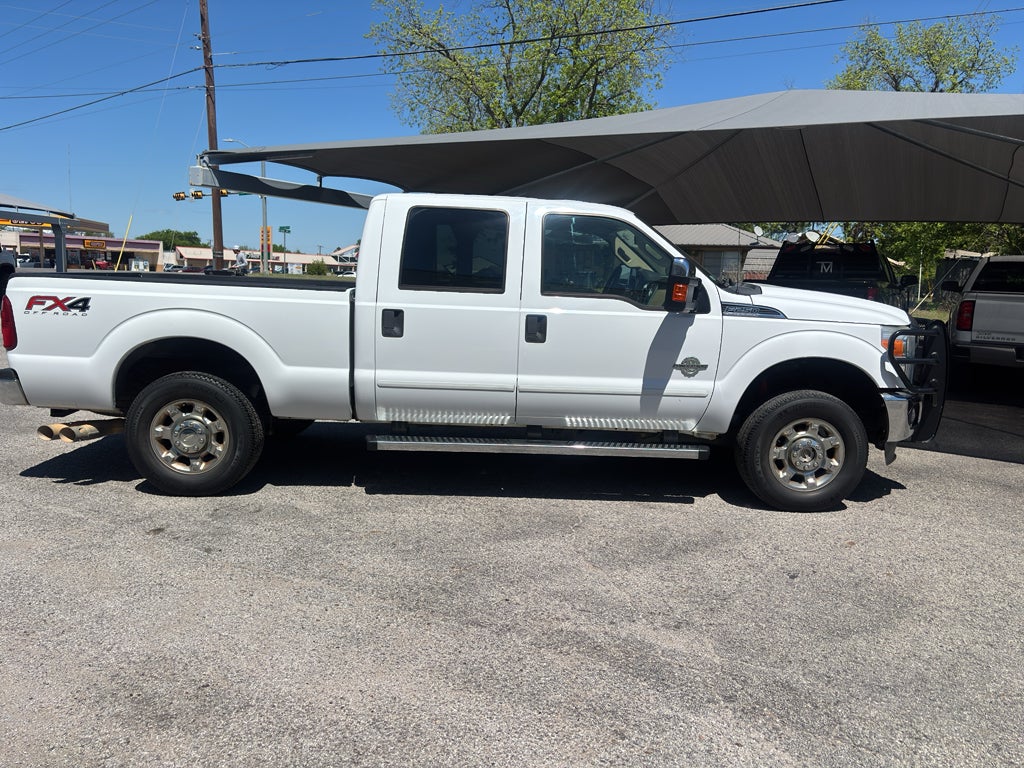

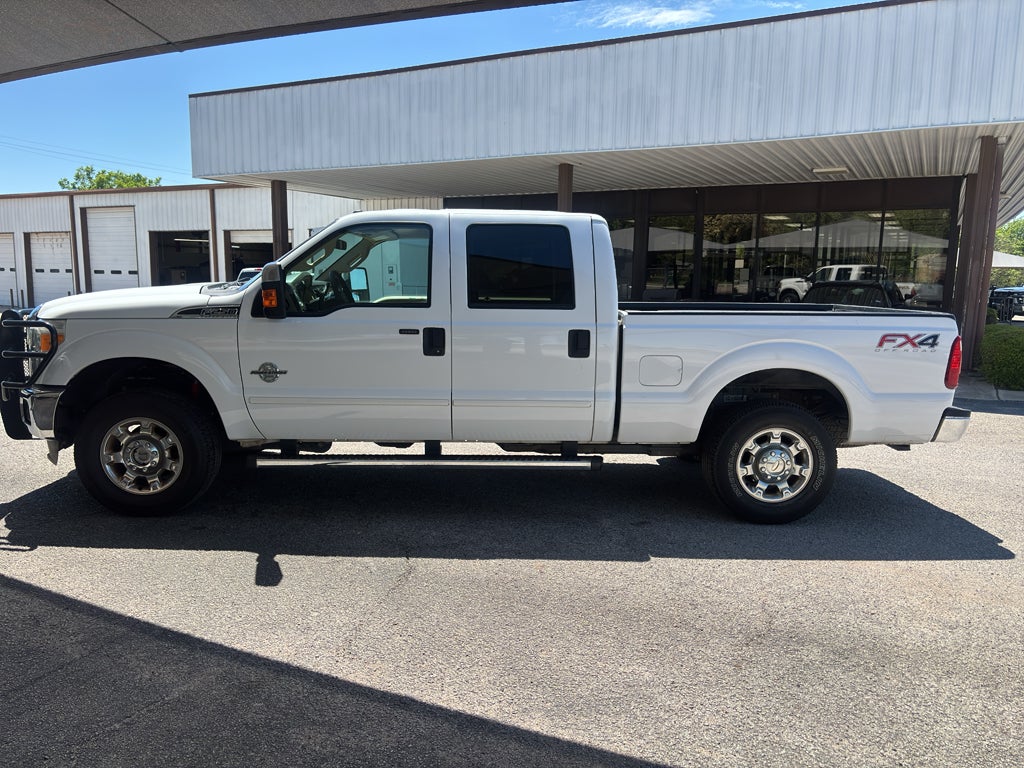

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Crew Cab Pickup
• Body Code: 156" WB
